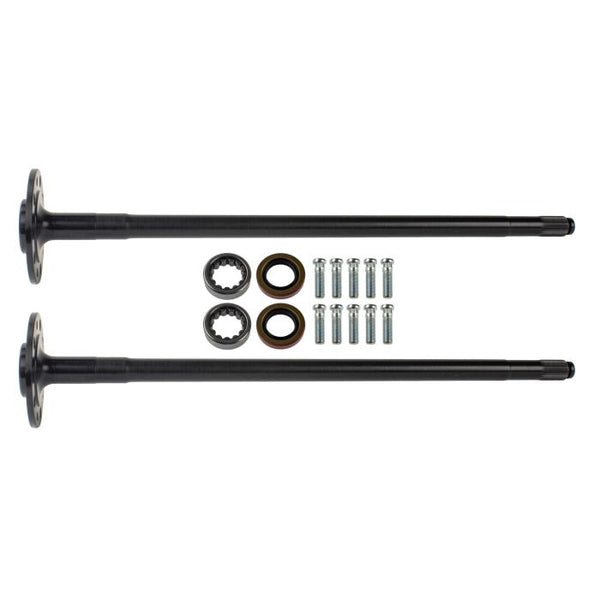

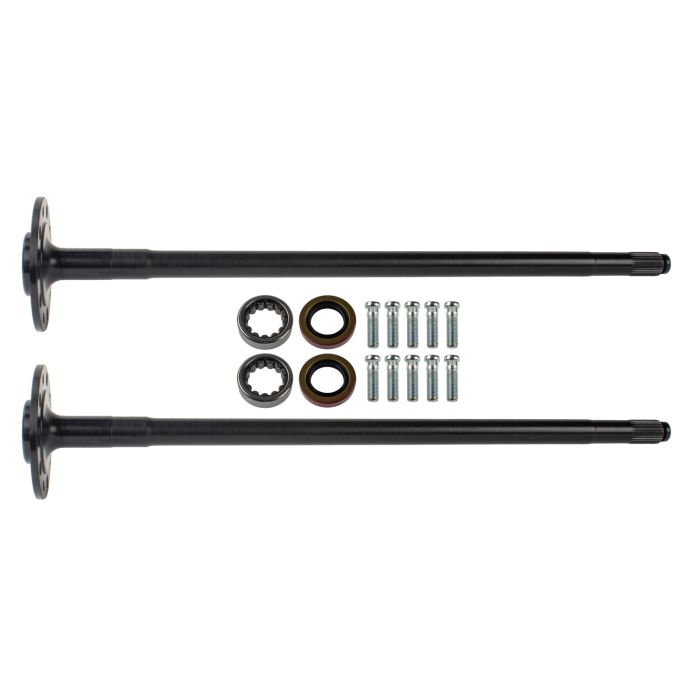

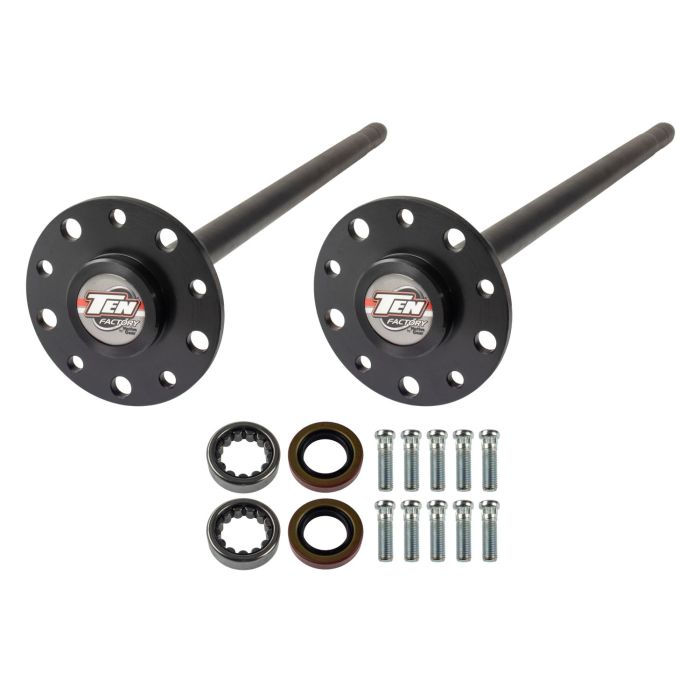

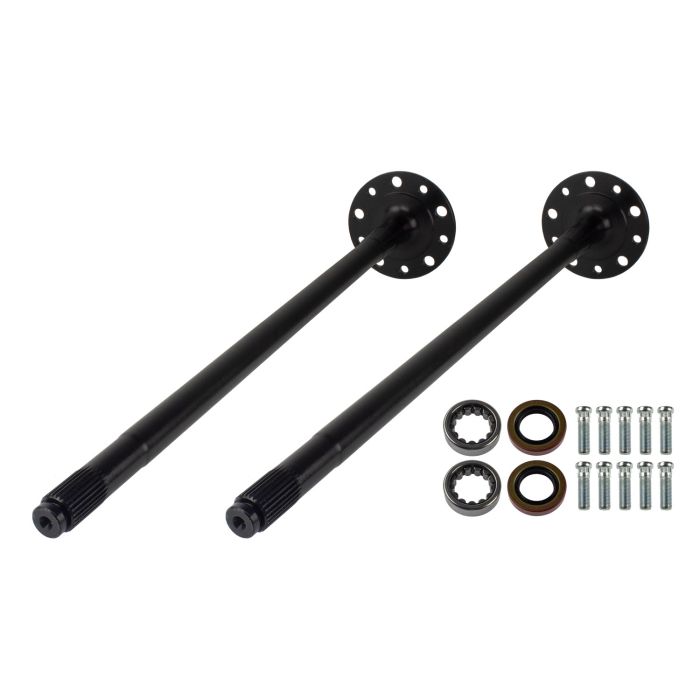

MG22101 - Rear Kit-GM8.2/8.5 28Spl 30.12"

Vehicle Applications

• 1970 – 1981 Chevrolet Camaro

• 1968 – 1972 Chevrolet Chevelle

• 1968 – 1972 Chevrolet El Camino

• 1971 – 1972 GMC Sprint

• 1970 – 1981 Pontiac Firebird

Application Notes

• For GM 8.2", 8.5"

• Performance Rear Axle Kit

• Axle Length 30.12"

• 5 x 4.75 Lug Pattern

• 28 Spline

Specifications

• Axle Bolt Hole Diameter .4375 Press-In (Inch), .5 Press-In (Inch)

• Axle Length 30.12 (Inch)

• Axle Material 1541 Manganese

• Coated Finish Black Oxide

• Differential Case Design Type GM 8.2, GM 8.5

• Inboard Spline Quantity 28
